Basement Epoxy Flooring in Ottawa & the National Capital Region - Moisture-Proof Systems for Below-Grade Slabs

Ottawa’s Below-Grade Moisture Challenge

Leda clay is the substrate story every Ottawa basement floor has to answer to. This marine clay, deposited by the Champlain Sea 10,000 years ago, retains groundwater far longer than the glacial till you find in most Ontario cities and drives moisture vapour upward through concrete slabs at emission rates that ordinary coatings simply cannot survive. Homes throughout The Glebe, Sandy Hill, and Old Ottawa South sit on that clay. Their basement slabs consistently register 80 to 95% relative humidity on ASTM F2170 in-situ probes during spring and early summer. Coat that slab without addressing the vapour pressure and the finish bubbles and peels inside two seasons.

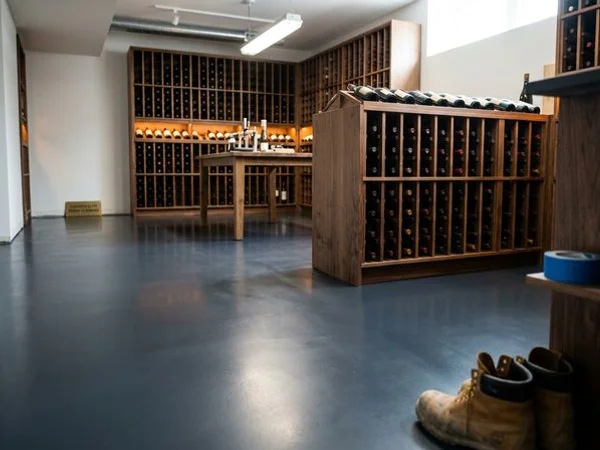

Our basement systems are engineered from the slab up around this exact condition. As Ottawa’s full-spectrum epoxy flooring contractor, we run F2170 probes on every basement slab before a single coat is applied and specify a vapour barrier primer sized to the actual reading. The result is a seamless floor that stays bonded through the aggressive moisture cycling Ottawa hands it year after year. Many homeowners take it further with a decorative metallic pour for a high-end rec-room or wine-cellar finish.

How the Vapour Barrier System Works

Standard epoxy fails below grade because moisture vapour exerts continuous upward pressure through the slab and lifts any coating that is not specifically engineered to hold against it. Our system defeats vapour drive at two points in the assembly.

First, a moisture mitigation primer bonds to damp concrete at the chemical level and lays down a low-permeance layer between slab and finish coat. That primer is a two-component polyurea or moisture-tolerant epoxy rated for slabs testing up to 95% RH. Second, a 100% solids epoxy base coat applied at 8 mils dry film thickness minimum adds a physical vapour retarder on top of the primer. Between the two layers, vapour transmission drops well below the level that causes delamination or blistering.

Centretown and Glebe homes with pre-1960 slabs regularly show F2170 readings between 80 and 95% RH during the spring thaw window from March through May. Above 90% RH, even a standard mitigation primer may not carry the load, and a full reactive polyurea vapour barrier becomes the correct specification before any decorative coating goes down. This is exactly why the 72-hour probe test is not optional for basement epoxy in Ottawa.

What Every Basement Epoxy Install Includes

• Free same-day on-site assessment with sample boards
• 72-hour ASTM F2170 moisture vapour testing
• Diamond grinding and crack repair as needed
• Moisture mitigation primer or vapour barrier when readings require it
• 100% solid zero-VOC epoxy base coat in your chosen colour
• Optional flake broadcast or 3D metallic layering
• Clear protective topcoat for cleaning and traffic durability
• Detailed work around plumbing, columns, and stair edges
• Warranty in writing

Why ASTM F2170 Testing Matters Before Any Basement Coating

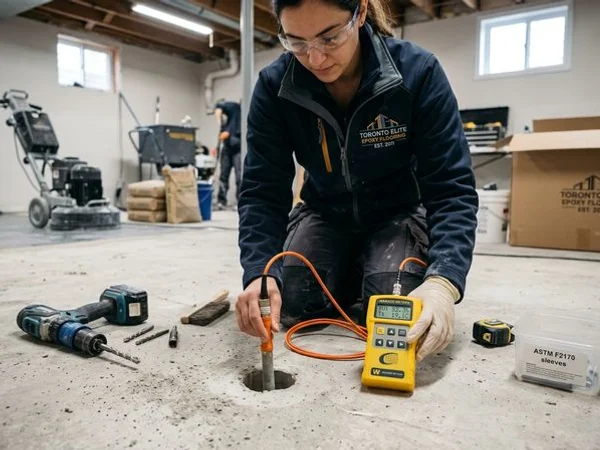

ASTM F2170 is the current standard method for measuring in-situ relative humidity inside a concrete slab. The older ASTM F1869 calcium chloride test measures only the surface emission rate, which is not the same thing. An F2170 probe is inserted into a hole drilled 40% of the way through the slab depth and sealed for 72 hours minimum. The number that comes back captures the actual humidity condition inside the concrete mass, and that is the number that predicts long-term vapour drive behaviour under a sealed coating.

The practical difference for basement epoxy is significant. A slab that passes a January calcium chloride test can easily register 88% RH on an April F2170 probe once 224 cm of accumulated snowmelt has saturated the surrounding Leda clay. Contractors who skip the 72-hour wait or rely on a surface-only test will routinely pass a slab that is genuinely too wet to coat. The delamination typically shows up 12 to 24 months later, after the first summer heating cycle drives vapour pressure to its seasonal peak.

The written F2170 record also has warranty value beyond the diagnostic itself. A documented pre-installation reading gives both the homeowner and the installer a baseline against which any future performance question can be evaluated.

Basement Finishes Compared: Epoxy vs Vinyl vs Tile

Luxury vinyl plank is the most common alternative homeowners weigh against epoxy for a basement finish. LVP is a floating floor, meaning it is not bonded to the concrete substrate. That creates an air gap where vapour drive continues to push moisture up against the underside of the planks. In a below-grade space with measured RH above 60% at the slab surface, the joints will swell over time. Most LVP manufacturers void their warranty above a certain slab emission rate, and those rates are routinely exceeded in older Ottawa housing stock without any intervention.

Ceramic and porcelain tile bonded with polymer-modified thin-set creates a more rigid assembly than LVP, but grout remains the weak point. Grout is porous. It absorbs vapour and harbours mould colonies over time in a consistently damp environment. Epoxy grout reduces the risk but adds installation complexity and cost, pushing the total installed price for tile to $12 to $18 per sq ft, well above the $4 to $13 per sq ft range for a full basement epoxy system.

Polished concrete deserves a mention. A Class B grind and polish produces a low-maintenance surface, but polishing adds no vapour barrier whatsoever. Polished concrete over a high-RH slab will eventually show efflorescence as vapour carries dissolved minerals to the surface. Of the common below-grade options, basement epoxy with moisture mitigation is the only one that actively addresses vapour drive rather than working around it.

Pet-Friendly, Zero-VOC, and Safe for Occupied Homes

Below-grade air exchange is lower than any above-grade floor, which is why the zero-VOC specification actually matters here. Solvent-based epoxies off-gas volatile organic compounds during cure, and a basement does not clear that load quickly. A 100% solids system carries no solvent to off-gas, which is precisely why it is the correct chemistry for occupied homes with kids and pets. Once fully cured, the surface is chemically inert and non-porous.

Homes with large dogs get a topcoat selection tuned for scratch resistance. Aliphatic polyurea topcoats rate above 80 on the Shore D scale, significantly harder than a standard clear epoxy topcoat. For high-traffic rec rooms in busy Orleans and Kanata households where the floor sees daily use from dogs, kids’ toys, and rolling furniture, aliphatic polyurea is our standard topcoat rather than an upgrade line.

Basement Epoxy Flooring Cost

Basement epoxy pricing varies primarily by system complexity and slab condition. A standard two-coat system with moisture mitigation primer and solid-colour 100% solids epoxy runs $4 to $5.50 per sq ft installed. That covers slabs with ASTM F2170 readings under 75% RH that only need the primer for mitigation.

Slabs above 75% RH require a reactive polyurea vapour barrier coat before the decorative system. That layer adds $0.75 to $1.25 per sq ft depending on product and measured vapour emission rate. For most Centretown and Glebe basements tested in spring, this brings the working total to $4.75 to $6.75 per sq ft.

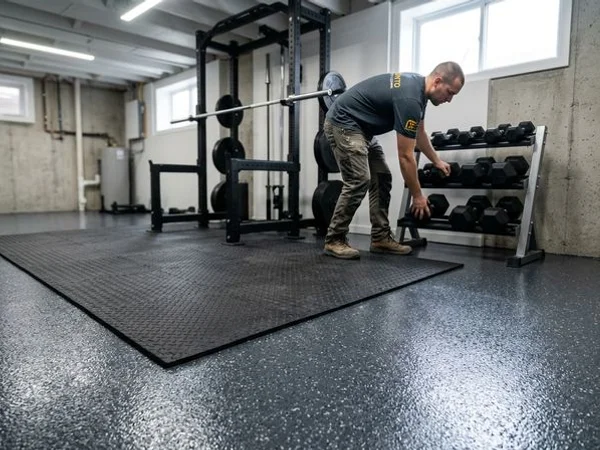

Decorative upgrades take pricing into the $6.50 to $13 per sq ft range. Full-flake broadcast systems add texture and visual depth and are the most popular choice for basement gyms across the National Capital Region. Metallic pigment systems run $8 to $13 per sq ft installed and are commonly specified for home theatres and wine cellars in Rockcliffe Park and Westboro renovations. Substrate repairs, meaning crack routing and filling, are quoted on assessment but typically add $0.50 to $2.00 per sq ft on slabs in poor condition.

Waterproofing vs Epoxy: Understanding the Difference

Basement epoxy and basement waterproofing solve different problems, and conflating the two is one of the most common mistakes in renovation planning. Epoxy addresses vapour drive, the diffusion of moisture vapour up through an otherwise structurally sound slab. Interior waterproofing systems like a French drain with a sump pump address hydrostatic pressure, the physical force of groundwater accumulating against a foundation wall or under a slab.

Active water intrusion through wall cracks, window wells, or floor-wall joints needs to be addressed before any floor coating is installed. Applying epoxy over active water infiltration produces delamination within months, not years. For basements with no active entry but consistently high vapour readings, which describes the majority of older homes in Ottawa’s central neighbourhoods, epoxy with a reactive polyurea vapour barrier is the correct intervention.

Questions Homeowners Ask

How much does basement epoxy cost for a 1,000 sq ft basement?

A 1,000 sq ft basement with a standard moisture mitigation primer and solid-colour epoxy runs roughly $4,000 to $5,500 installed. If the slab tests above 75% RH on the F2170 probe, common in The Glebe and Centretown come spring, add $750 to $1,250 for the reactive polyurea vapour barrier layer. Decorative flake or metallic finishes take the total to $6,500 to $9,000 for the same footprint.

Can basement epoxy be installed in winter

Yes, with conditions. Both concrete and epoxy chemistry require a minimum substrate temperature of 10 degrees Celsius to cure correctly. An unheated basement in January will fall well below that threshold. We require the space to be heated to at least 15 degrees Celsius for 48 hours before prep begins, and held there through cure. Most occupied homes already meet that requirement.

What is the lifespan of a basement epoxy floor?

Correctly installed, meaning over an F2170-tested slab with the appropriate vapour mitigation, a basement epoxy floor stays in good condition 15 to 20 years or more under normal residential use. The topcoat will show wear in high-traffic zones before the base coat does. Re-topcoating at $1.50 to $2.50 per sq ft refreshes the surface without replacing the full system.
