When Standard Flooring Falls Short

Tile grout lines, plank seams, and solid-colour paint floors are fine for utility spaces. For a basement theatre, wine cellar, luxury showroom, or statement garage, they fall short. Standard flooring cannot compete with the depth and reflectivity of a metallic pour, and it ages the same as every other floor in the building.

Custom metallic and 3D epoxy delivers a floor that looks like poured stone or liquid metal, and no two installs are identical. It is a design decision that holds up to the same daily wear as our garage floor epoxy systems, installed by Ottawa’s full-spectrum epoxy flooring contractor.

What Every Metallic Epoxy Install Includes

• Free on-site consultation with sample boards in real materials
• Diamond grinding and full slab prep (moisture testing on basements)
• 100% solid commercial-grade epoxy base coat
• Custom metallic pigment layering, colours and pattern chosen with you
• Liquid-art application by experienced installers
• Clear urethane or polyaspartic topcoat for durability and depth
• Detailed work around walls, columns, and stairs
• Warranty on the system, in writing

How Metallic Epoxy Is Made

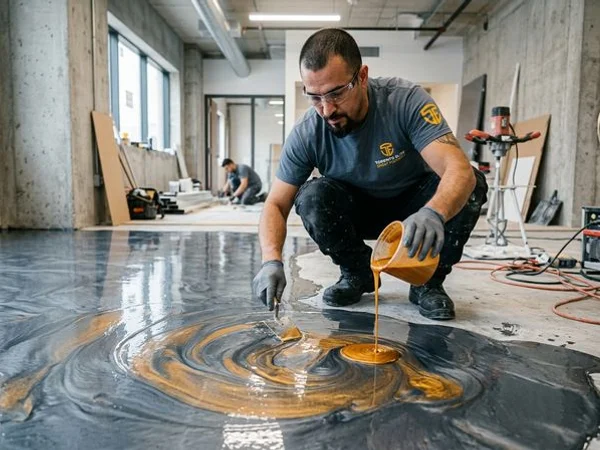

Metallic epoxy is a 100% solids epoxy resin combined with ultra-fine mica and metalite pigment particles, typically ranging from 10 to 80 microns in size. When the wet resin is manipulated with a brush, squeegee, or compressed air, the pigment particles reorient at different depths and angles, scattering light in a way that produces the illusion of depth and three-dimensional movement.

A properly built system starts with a concrete surface profile of CSP 2 to CSP 3. On Ottawa basement slabs, where moisture vapour emission is a consistent concern given the region’s Leda clay soil, we run a calcium chloride test per ASTM F1869 before any product touches the concrete. Slabs reading above 3 lbs per 1,000 sq ft per 24 hours receive a moisture-tolerant epoxy primer before the decorative layers go down. Skipping this step is the single most common reason metallic floors delaminate within 18 months of install.

The decorative layer itself is a 100% solids epoxy mid-coat seeded with metallic pigment, followed by a manipulation step to develop the pattern. Once the mid-coat reaches a firm gel state, a second broadcast of fine metallic powder is sometimes added for additional depth before the system is sealed with an aliphatic polyurea or polyaspartic topcoat. Aliphatic chemistry is specified for UV-exposed areas because it resists the yellowing that standard aromatic epoxy topcoats develop after six to twelve months.

Design Trends for Ottawa Homes and Showrooms

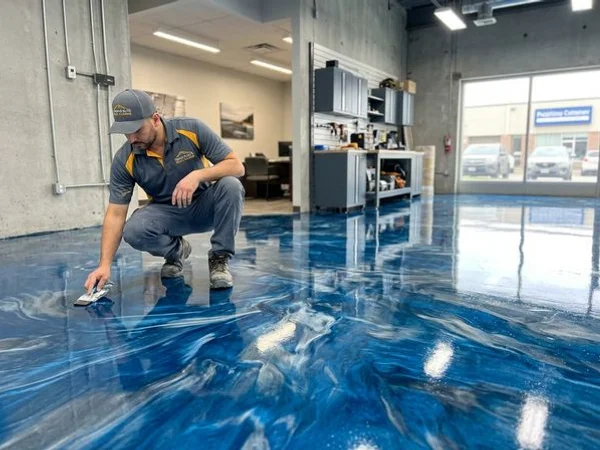

The most requested metallic finishes across the National Capital Region have shifted toward cooler, high-contrast palettes. Gunmetal Silver over a charcoal base is the dominant choice for home theatres and wine cellars in Rockcliffe Park and Westboro, where the goal is a moody, light-absorbing floor that reads as architectural rather than decorative. Oceanic blue-and-silver combinations remain popular for gym conversions and luxury basement bars in Kanata and Barrhaven, where homeowners tend to favour bolder residential palettes.

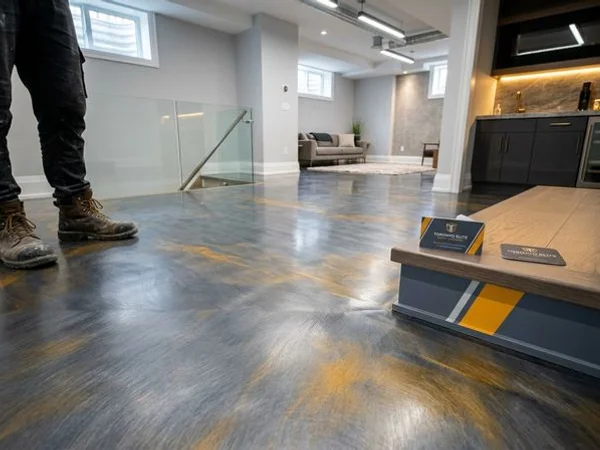

On the commercial side, showrooms along Bank Street and in the ByWard Market have moved toward brushed-copper and warm-gold metallics on light grey bases. These finishes photograph well under 4000K LED track lighting common in retail buildouts and provide a visual contrast against dark display fixtures that neutral polished concrete cannot match.

Glow-in-the-dark additives have moved from novelty to a genuine design tool for stairwell landings and basement egress paths. Strontium aluminate photoluminescent powder charges under standard LED ambient light and emits a blue-green glow for six to eight hours after lights-out.

Custom colour matching is increasingly driven by interior designers. We receive finish specifications tied to Benjamin Moore or Sherwin-Williams paint codes, and pigment manufacturers supply custom-blended metallic powders matched to those references within a Delta-E tolerance of 2 or less.

Metallic Epoxy Cost vs Standard Flake

The installed cost gap between a decorative metallic system and a standard full-broadcast vinyl chip floor is real, and it is worth understanding what drives it. A standard full-broadcast vinyl flake floor on a 500 sq ft basement slab costs $5 to $7 per sq ft installed. A single-colour metallic pour on the same slab runs $9 to $11 per sq ft. A multi-layer 3D pour with two or three pigment colours and an aliphatic polyurea topcoat reaches $13 to $16 per sq ft.

The cost difference breaks down across three factors. First, metallic pigment itself is expensive relative to vinyl chip. Second, the labour time for a metallic pour is higher because the manipulation phase requires two or three applicators working simultaneously within the resin’s working window. Third, a UV-stable aliphatic polyurea topcoat adds $1.50 to $2.50 per sq ft over a standard polyaspartic finish.

For a Kanata or Westboro basement running 600 sq ft, a realistic all-in budget for a two-colour metallic with polyaspartic topcoat is $6,000 to $8,400. When clients in Rockcliffe Park or The Glebe are finishing a basement to a standard where every other surface has been custom-specified, the metallic system is the logical finish at that fit-out level. For purely functional spaces, flake is the better value and we will tell you so.

Questions Homeowners Ask

How thick is a metallic epoxy floor system?

A complete metallic epoxy system runs 40 to 60 mils total dry film thickness. That breaks down as 10 to 15 mils for the moisture primer, 20 to 30 mils for the pigmented metallic mid-coat, and 8 to 12 mils for the polyaspartic or polyurea topcoat. At those thicknesses the system adds less than 1.5 mm of height to the slab, below the threshold that requires transition strips at doorways on standard residential builds.

Can metallic epoxy be repaired if it chips or scratches?

Spot repairs on metallic floors are possible but rarely invisible. Because the pattern is created through live pigment manipulation, an exact colour and movement match on a repair patch is not achievable. The practical answer for high-use areas is to specify a harder topcoat at installation, which reduces the likelihood of needing a repair in the first place.

What prep does an basement slab need before metallic epoxy?

Most pre-1980 Ottawa basement slabs present two prep challenges: surface laitance from the original concrete pour, and elevated moisture vapour emission from the absence of a sub-slab vapour barrier. Diamond grinding to CSP 2 removes the laitance layer. Moisture readings above 3 lbs per 1,000 sq ft per 24 hours on ASTM F1869 require a moisture-tolerant epoxy primer before any decorative product is applied. On older Glebe and Centretown slabs we budget for the primer as a standard line item because the probability of elevated moisture on those properties is high.

Is metallic epoxy safe for a home gym?

The standard high-gloss topcoat on a metallic floor produces a surface with a wet coefficient of friction below 0.5, which is too slippery for barefoot exercise. Specifying a matte or satin polyaspartic topcoat, or adding an anti-slip broadcast of aluminium oxide at 30 to 50 mesh, raises the dry coefficient of friction to 0.6 or higher without visually affecting the metallic pattern underneath.
